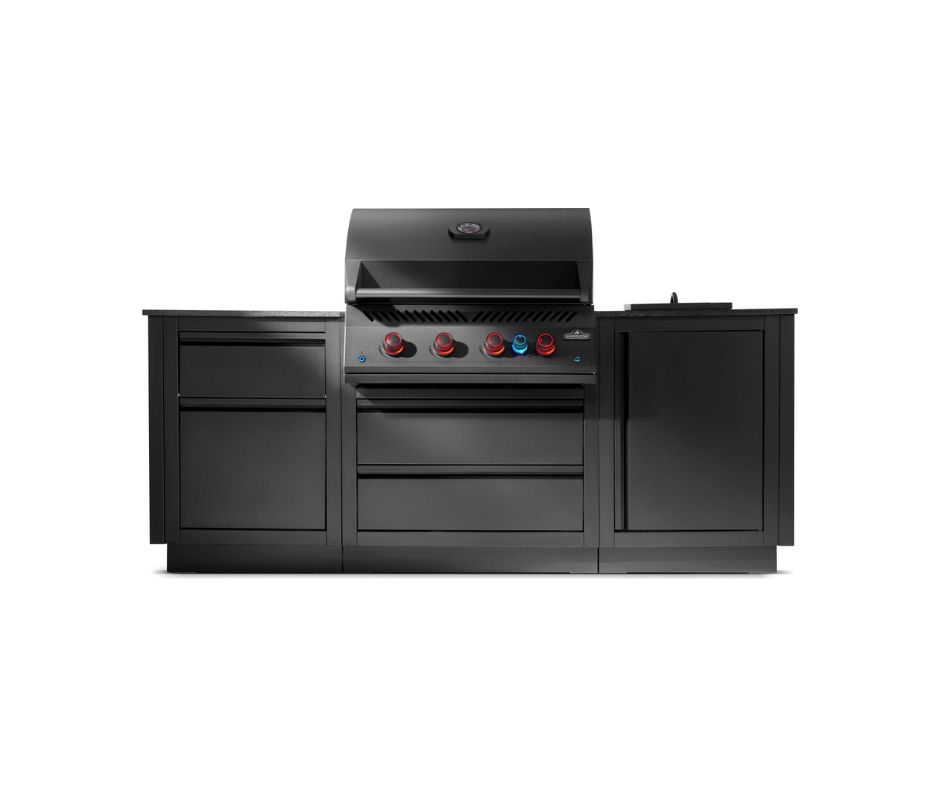

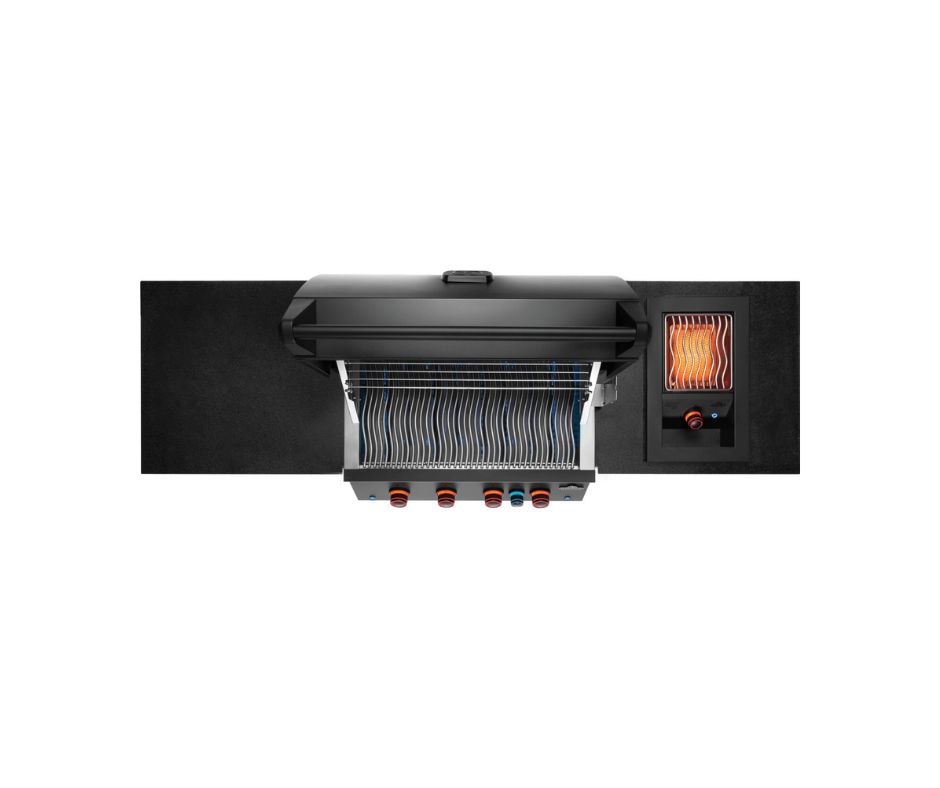

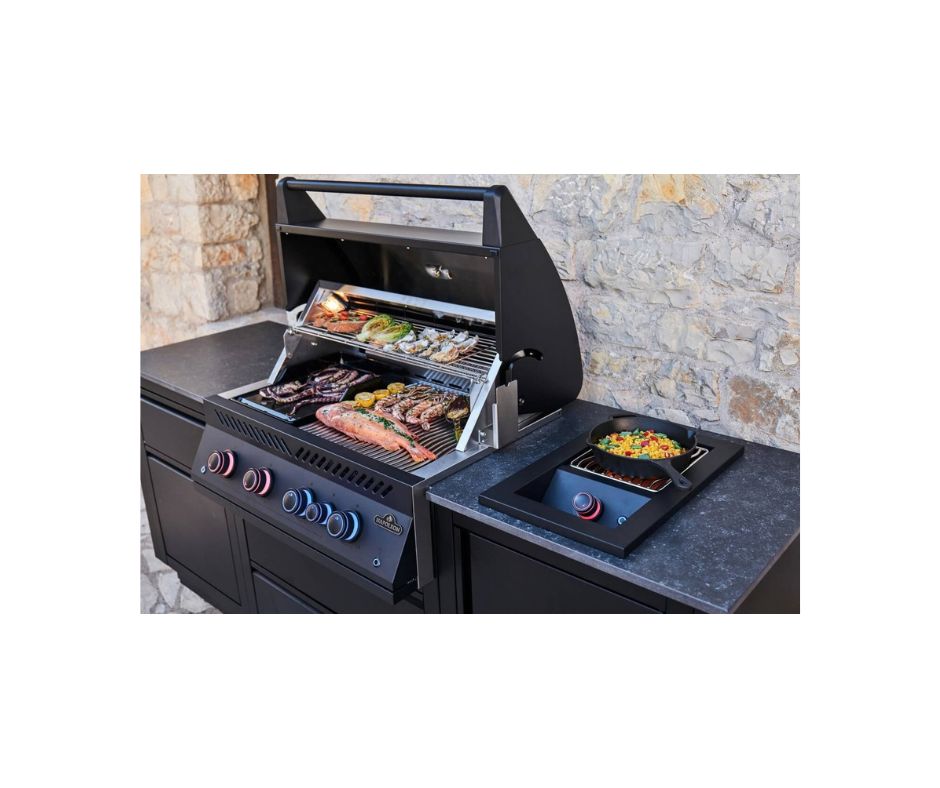

Napoleon outdoor kitchen Oasis Compact 105 with BIG32 built-in grill and built-in Sizzle Zone

€6,399.00

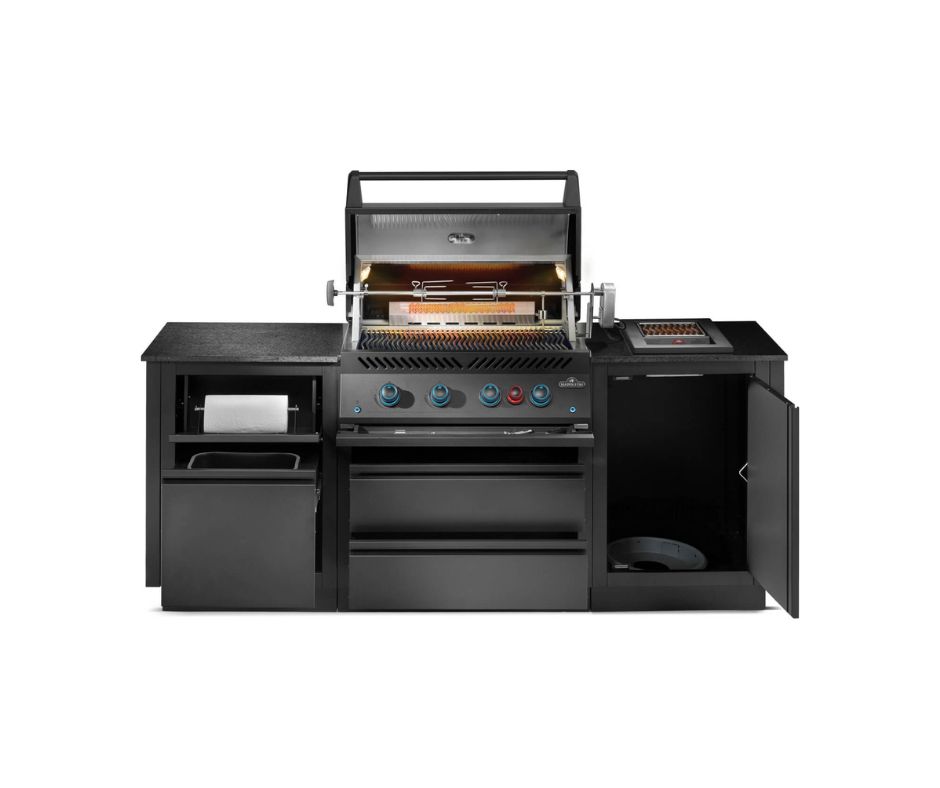

Fully equipped Napoleon outdoor kitchen ! Oasis Compact 105 complete kit for self-assembly – including worktop in porcelain stoneware by Marazzi. Napoleon BIG32 built-in grill made of 304 stainless steel with 4 stainless steel burners, infrared rear burner incl. rotisserie and safety glow control dials. Napoleon Sizzle Zone built-in side burner with 3 kW and shot-peened stainless steel grill grate and Safety Glow dial. Base cabinet with 2 spacious drawers for barbecue cutlery, crockery, pots and pans. Gas bottle cabinet with door and multifunctional cabinet with kitchen roll holder and waste bin pull-out.

Includes:

  • Under Grill Cabinet (IM-UGC32-CN)
  • Propane tank cabinet (IM-TSBC-CN)
  • End panel (2x IM-CEP-CN)
  • Ceramic Marazzi worktop
  • Complete gas connection kit
  • Electrical connection for side burner lighting
  • Rotisserie Kit included
  • Covers: For the BIG32 (61830) For the BIB10 (61810)
  • Waste drawer cabinet (IM-WDC-CN)



Wishlist
SKU: ODK105-BIG32P-DE Categories: , Tag:

Measures & Weight

Dimensions (W x D x H): 224.5cm x 83 x 129.1cm
Height with open lid: 153.7 cm
Weight: 369.3kg
Packing dimensions: Pallet 1: 120 x 100 x 180 cm.
Pallet 2: 120 x 80 x 192 x cm



Performance & Burner

main burner: 4, stainless steel
side burner: yes, infrared SIZZLE ZONE
rear burner: yes, stainless steel infrared
Main burner power 16kW
Performance side burner 3kW
Rear burner power 5.5kW
overall performance 24.5kW
gas type: propane

Grill surface & Grates

Grill area cooking chamber: 74.6 x 45.4 cm
Grill area side cooking area: 23×26.5cm
Area warming rack: 73 x 22.5 cm
Grill grate material: Stainless steel, shot blasted
Infrared Side Burner Material: 304 stainless steel
lid height 30 cm
